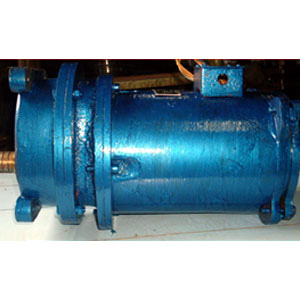

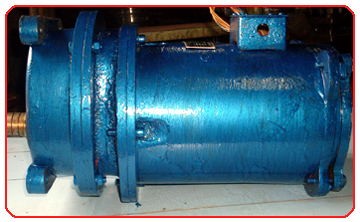

Geared Brake Motors are used for Cross travel and Long travel in hoists and cranes. These motors are available in a variety of speed and different Horse powers.
The Geared brake motor consists of 3 parts i.e. conical squirrel cage motor, gear box & integral brake.
The motors have very high efficiency and are very compact. Flange mounted and foot mounting options available.
C.T. & L.T. MOTOR |
||||
|---|---|---|---|---|
| Model No. | HP | Motor RPM | Gear Type | Out Put Speed |
| HOH 5141 | 0.5 | 1440 | N | 100 |
| HOH 5142 | 0.5 | 1440 | S | 110 |
| HOH 5101 | 0.5 | 1000 | N | 75 |
| HOH 5102 | 0.5 | 1000 | S | 85 |
| HOH 571 | 0.5 | 720 | N | 52 |
| HOH 572 | 0.5 | 720 | S | 62 |
| HOH 1141 | 1 | 1440 | N | 100 |
| HOH 1142 | 1 | 1440 | S | 110 |
| HOH 1101 | 1 | 1000 | N | 75 |
| HOH 1102 | 1 | 1000 | S | 85 |
| HOH 171 | 1 | 720 | N | 52 |
| HOH 172 | 1 | 720 | S | 60 |
| HOH 2141 | 2 | 1440 | N | 140 |
| HOH 2142 | 2 | 1440 | S | 120 |
| HOH 2101 | 2 | 1000 | N | 100 |
| HOH 2102 | 2 | 1000 | S | 85 |
| HOH 271 | 2 | 720 | N | 50 |
| HOH 272 | 2 | 720 | S | 60 |
